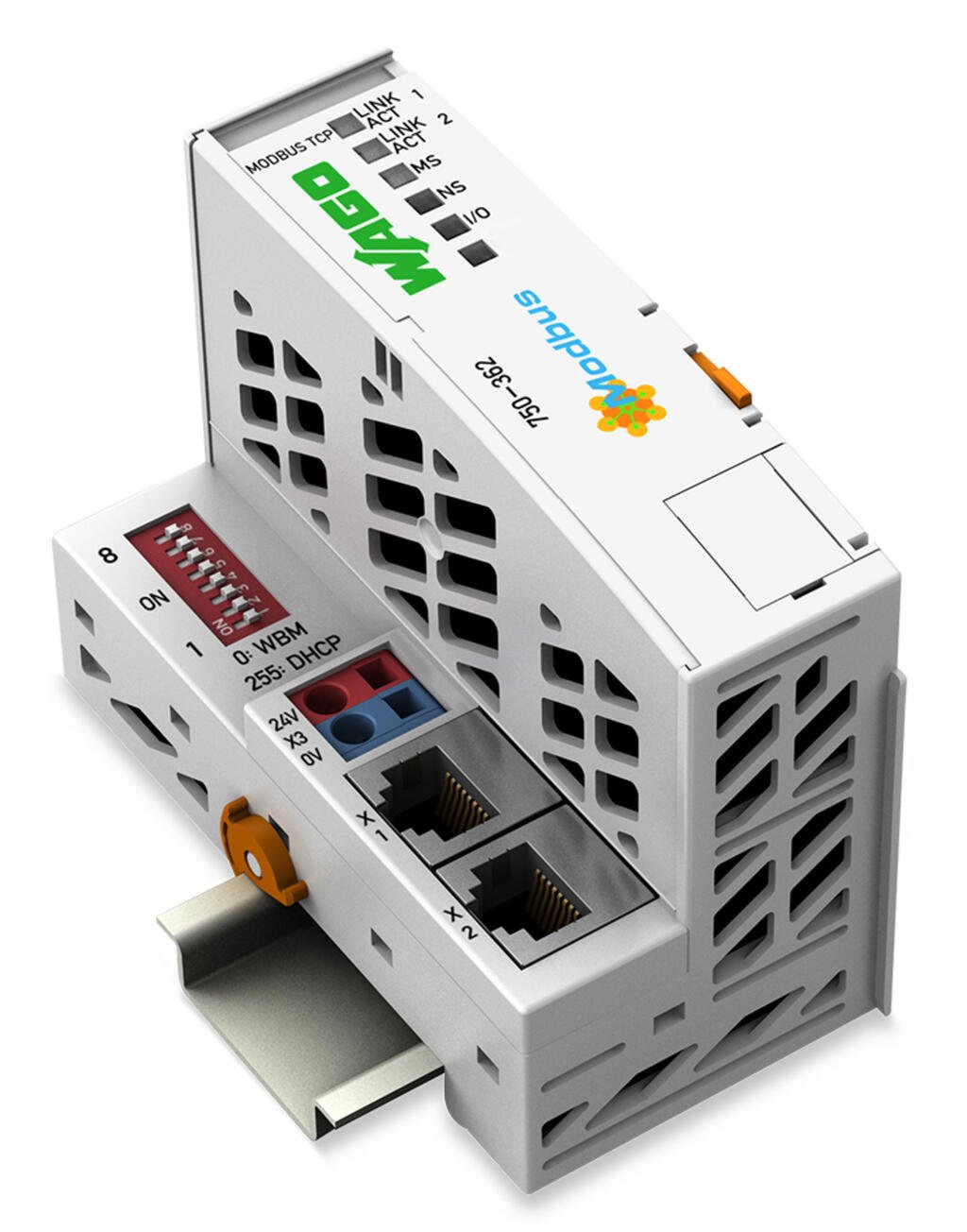

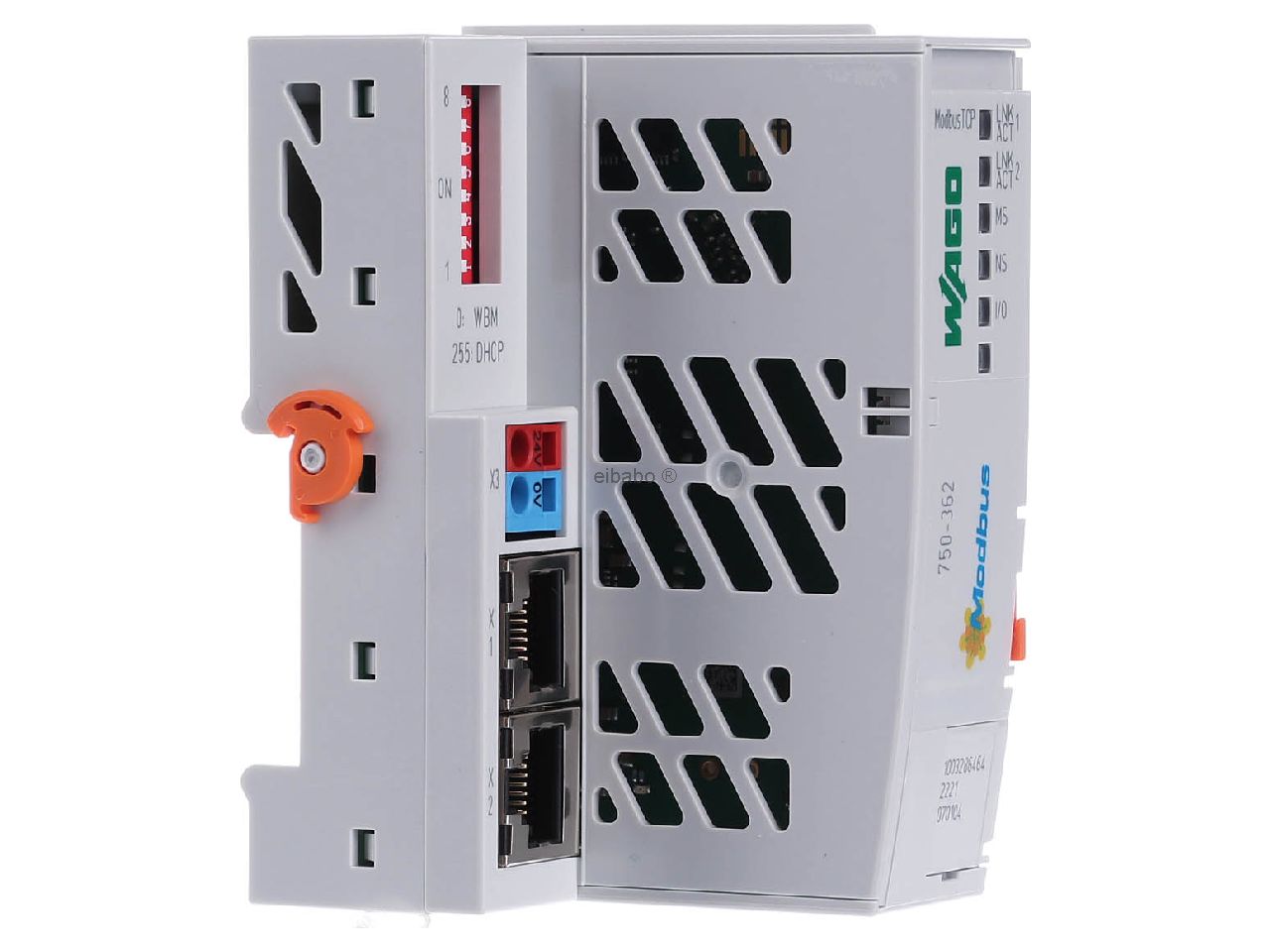

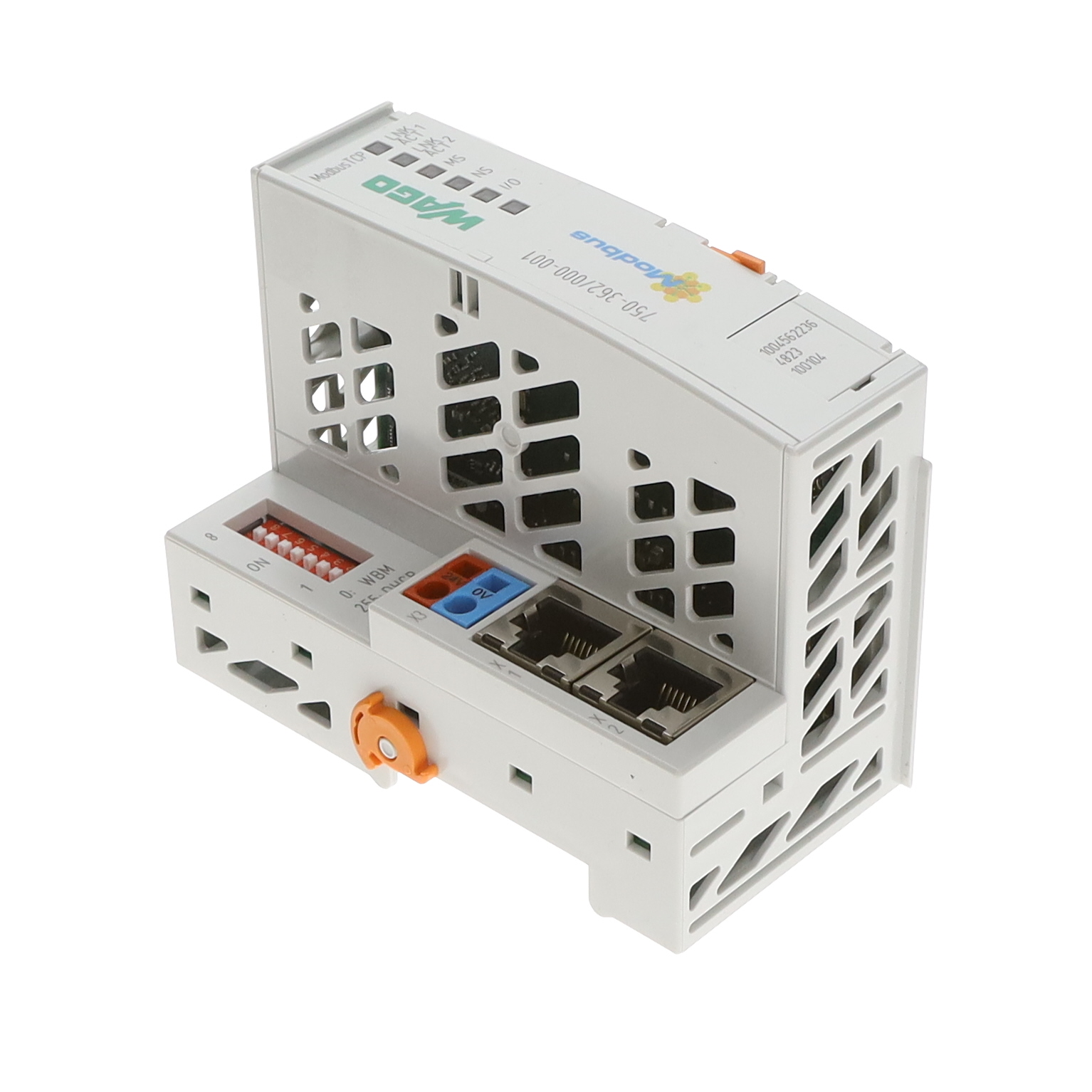

750-362/K013-1080, WAGO, GEA Module, Bus Coupler, Modbus Ethernet, Fieldbus Coupler Modbus TCP; 4th generation
Description
Also too: 750-362
Technical data
| Communications | Modbus (TCP, UDP) |
| ETHERNET protocols | HTTP(S) BootP DHCP DNS SNTP FTP(S) SNMP |
| Transmission rate | 10/100 Mbit/s |
| Transmission medium (communication/fieldbus) | Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length |
| Transmission performance | Class D per EN 50173 |
| Number of modules per node (max.) | 250 |
| Number of modules without a bus extension (max.) | 64 |
| Input and output process image (fieldbus) max. | 1020 words/1020 words |
| Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector |
| Current consumption (5 V system supply) | 350mA |
| Total current (system supply) | 700mA |
| Input current (typ.) at nominal load (24 V) | 280mA |
| Power supply efficiency (typ.) at nominal load (24 V) | 90% |
| Isolation | 500 V system/field |
Indicators |
LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O) red/green/orange: Status of local data bus |
Más información, Solicite cotización.
Variantes: 725-120010-002
>>>1788122
Additional information
| Weight | 1048 kg |
|---|---|
| Dimensions | 7,1 × 4,5 × 9,68 cm |
