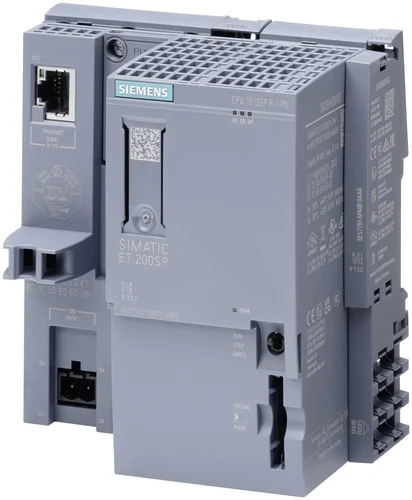

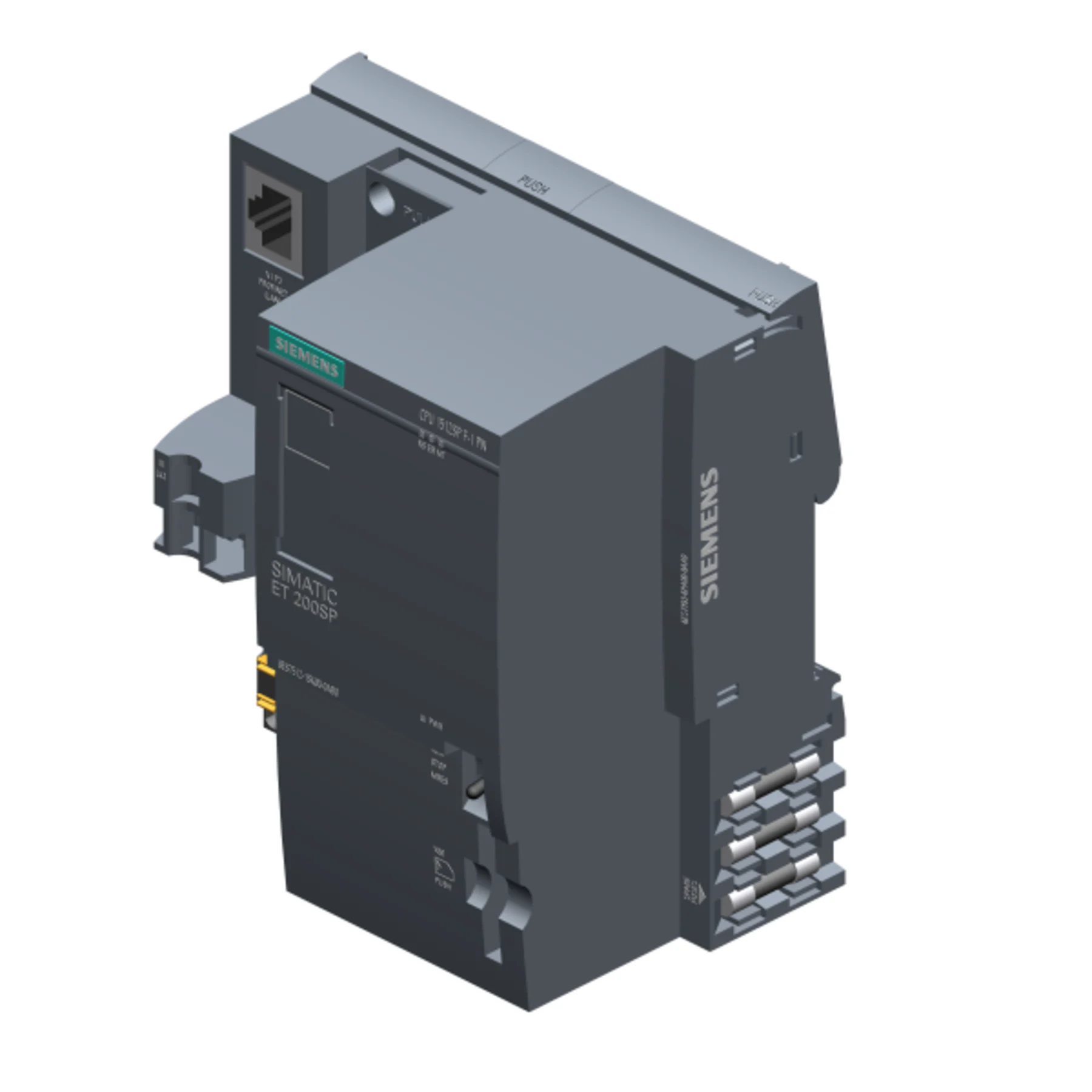

6ES7512-1SK01-0AB0, SIEMENS, SIMATIC DP, CPU 1512SP F-1 PN for ET200SP
Description
Descripción: SIMATIC DP, CPU 1512SP F-1 PN para ET 200SP, unidad central de procesamiento con memoria de trabajo de 300 KB para programa y 1 MB para datos, 1.ª interfaz: PROFINET IRT con switch de 3 puertos, potencia de 48 ns, se requiere SIMATIC Memory Card, Se requiere BusAdapter para los puertos 1 y 2
PRODUCT DETAILS:
| ETIM Group: | Programmable logic controllers PLC |
| ETIM Class: | Fieldbus, decentr. periphery – basic appliance |
| Appendant operation agent (Ex ia): | false |
| Appendant operation agent (Ex ib): | false |
| Degree of protection (IP): | IP20 |
| Depth: | 75mm |
| Explosion safety category for dust: | None |
| Explosion safety category for gas: | ATEX gas-ex-protection, Cat. 3G |
| Fieldbus connection over separate bus coupler possible: | true |
| Front built-in possible: | false |
| Height: | 117mm |
| Input voltage at AC 50 Hz: | – – |
| Input voltage at AC 60 Hz: | – – |
| Input voltage at DC: | 19.2 – 28.8V |
| IO link master: | false |
| Max. input current AC 50 Hz: | – |
| Max. input current AC 60 Hz: | – |
| Max. input current DC: | 0.9A |
| Max. output current AC 50 Hz: | – |
Mas Información?0.310
Additional information
| Weight | 0310 kg |
|---|
