6ES7954-8LP04-0AA0, SIEMENS, SIMATIC S7, memory cards for S7-1x 00 CPU, 3, 3V Flash, 2 GB.
27 de octubre de 2025
6ES7954-8LF03-0AA0, SIEMENS, SIMATIC Memory cards for S7-1×00 CPU/SINAMICS, 3, 3 V flash, 24 MB, Argentina.
27 de octubre de 2025

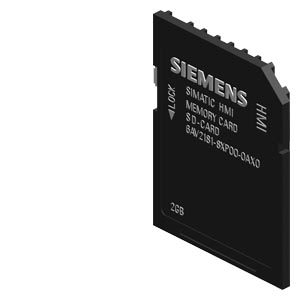

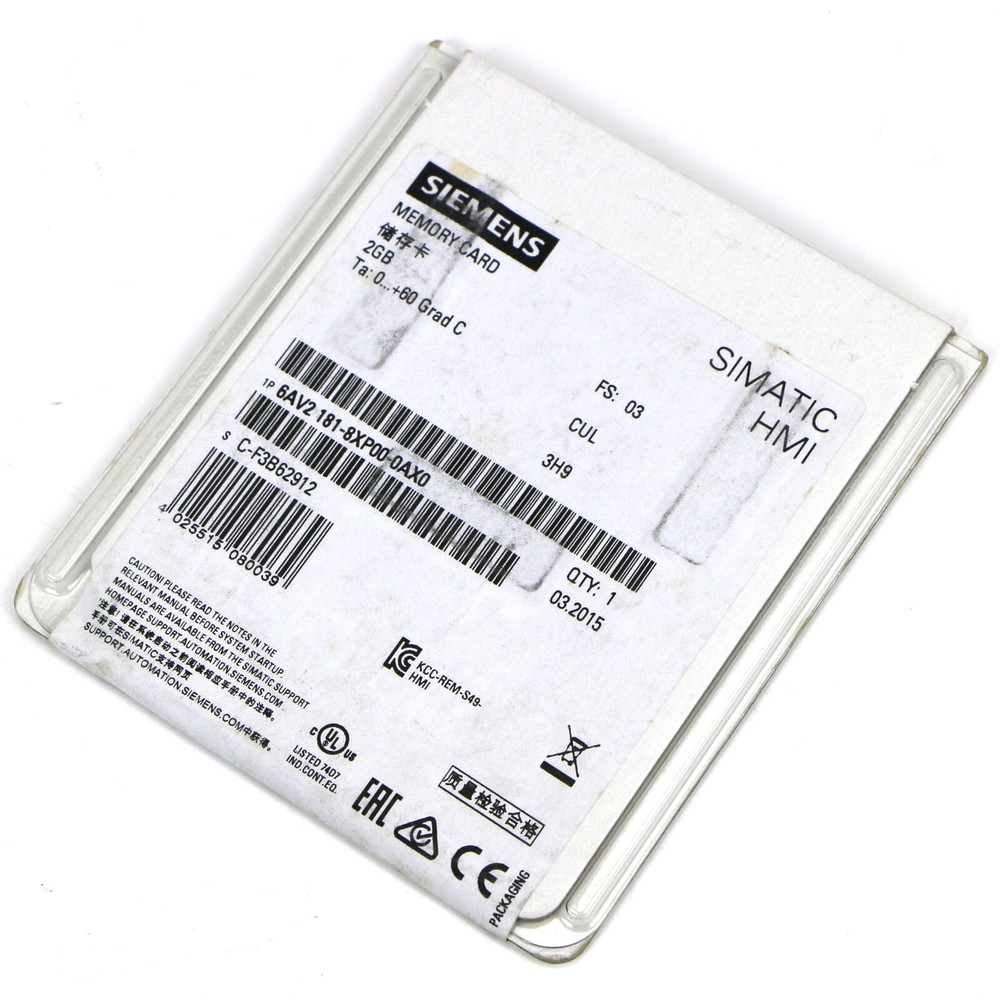

6AV2181-8XP00-0AX0, SIEMENS, Tarjeta de memoria 2GB, Siemens para Paneles de operador SIMATIC HMI, ARGENTINA
Description
| Product type designation | SD memory card | |
| Control elements | ||
| Frame size/design | ||
| ● Standard | Yes; Typically 10 000 insertion cycles | |
| ● Flat | Yes | |
| Installation type/mounting | ||
| Mounting position | Any, dependent on target device | |
| Mounting in portrait format possible | Yes | |
| Mounting in landscape format possible | Yes | |
| Supply voltage | ||
| Type of supply voltage | DC | |
| Rated value (DC) | 3.3 V; Max 3.6 V | |
| Input current | ||
| Current consumption (rated value) | 100 mA; Typical, maximum value | |
| Memory | ||
| Type of memory | Secure Digital memory card | |
| Memory size | 2 Gbyte | |
| Transmission rate for reading, max. | 600 Mbit/s; Typical | |
| Transmission rate for writing, max. | 600 Mbit/s; Typical | |
| Wear leveling (distributed writing) | Yes | |
| Write protection switch | Yes; Effectiveness depends on the device | |
| Interfaces | ||
| Device-side interface | ||
SOLICITE COTIZACION..
Additional information
| Weight | 0,003 kg |
|---|
