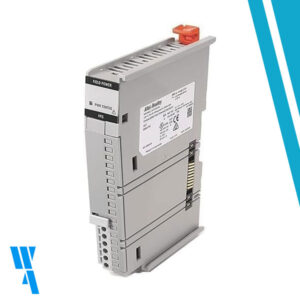

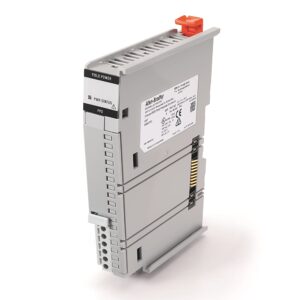

5069-FPD, Allen-Bradley, CompactLogix 5069, Módulo distribuidor de potencial de campo de E/S compacto 5069
Description
CompactLogix® 5380, CompactLogix 5480, or Compact GuardLogix® 5380
El 5069-FPD de Allen-Bradley es un distribuidor de potencial de campo de E/S compacto 5000. Este módulo interrumpe la alimentación de SA en el lado izquierdo y produce una alimentación de SA nueva y aislada en el lado derecho. Este módulo tiene una clasificación de paso de MOD de 9,55 A a 18-32 V CC; alimentación de SA de 10 mA a 0-32 V CC 25 mA a 0-240 V CA, 47-63 Hz ATEX/IECEX, 125 V CA, máx. y paso de alimentación de SA de 9,99 A a 0-32 V CC 9,975 A a 0-240 V CA, 47-63 Hz ATEX/IECEX, 125 V CA, máx.
Technical specifications for 5069-FPD
Dimensions: Height of 144.57 mm (5.69 in.); Width of 25.56 mm (1.01 in.) and Depth of 105.42 mm (4.15 in.)
Enclosure Type: None (Open Style)
Module Type: Field Potential Distributor (FPD)
Brand: Allen-Bradley
Part Number/Catalog No. 5069-FPD
Manufacturer: Rockwell Automation
MOD Power 955 mA @ 18…32V DC
SA Power 10 mA @ 0…32V DC; 25 mA @ 0…240V AC, 47…63 Hz ATEX/IECEX, 125V AC, max
SA Power (Passthrough) 9.95 A @ 0…32V DC 9.975 A @ 0…240V AC, 47…63 Hz ATEX/IECEX, 125V AC, max
Operating Temperature 0…60 °C (32…140 °F)
Maximum surrounding air temperature 60 °C (140 °F)
Installation: DIN Rail
Compatible DIN Rail EN50022 – 35 x 7.5 mm (1.38 x 0.30 in.)
Slot Width Single Slot
Number of Inputs: N/A
Number of Outputs: N/A
Voltage Category: N/A
Input Voltage Range: N/A
Output Voltage Range: N/A
Power Dissipation: 4.0 Watts
Weight 0.39 lbs (175 g)
UPC 885630530000
Catalog Numbers
Digital I/O Modules
Analog I/O Modules Safety I/O Modules Specialty Modules 5069-IA16, 5069-IB16, 5069-IB16F, 5069-IB16K, 5069-IB6F-3W,
5069-OA16, 5069-OB8, 5069-OB16, 5069-OB16F, 5069-OB16K,
5069-OW4I, 5069-OW16, 5069-OX4I
5069-IF4IH, 5069-IF8, 5069-IY4, 5069-IY4K, 5069-OF4, 5069-OF4K,
5069-OF4IH, 5069-OF8
5069-IB8S, 5069-IB8SK, 5069-OBV8S, 5069-OBV8SK
5069-AENTR, 5069-AENTRK, 5069-AEN2TR, 5069-ARM, 5069-FPD,
5069-HSC2XOB4, 5069-SERIAL
Digital I/O Modules
Analog I/O Modules Safety I/O Modules Specialty Modules 5069-IA16, 5069-IB16, 5069-IB16F, 5069-IB16K, 5069-IB6F-3W,
5069-OA16, 5069-OB8, 5069-OB16, 5069-OB16F, 5069-OB16K,
5069-OW4I, 5069-OW16, 5069-OX4I
5069-IF4IH, 5069-IF8, 5069-IY4, 5069-IY4K, 5069-OF4, 5069-OF4K,
5069-OF4IH, 5069-OF8
5069-IB8S, 5069-IB8SK, 5069-OBV8S, 5069-OBV8SK
5069-AENTR, 5069-AENTRK, 5069-AEN2TR, 5069-ARM, 5069-FPD,
5069-HSC2XOB4, 5069-SERIAL
