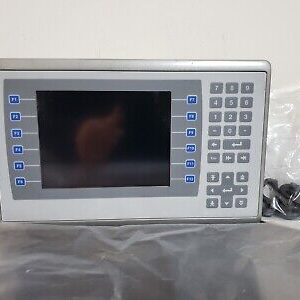

2711P-B7C22D9P, Allen Bradley, Interfase Operador, 7″ VGA. TFT Color. Single Ethernet. 24V
El Allen-Bradley 2711P-B15C22D9P es un terminal de operador PanelView Plus 7 Performance. Este dispositivo de interfaz hombre-máquina (HMI) se alimenta mediante un voltaje de suministro externo de 18-32 VCC. Tiene una pantalla LCD de matriz activa en color de 6,5 pulgadas con transistor de película delgada (TFT) e interfaces de operador con teclado y pantalla táctil integradas. Tiene una variedad de puertos de comunicación como dos (2) puertos Ethernet y tres (3) puertos USB.
Technical Specifications for 2711P-B7C22D9P
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Input Voltage range: | 18-30 VDC |
| Communication ports: | Two (2) Ethernet, Three (3) USB host |
| System Memory: | 1GB RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory) |
| Touch: | Analog resistive Actuation: 1 million presses; operating force: 100 g |
| Resolution: | 640 x 480 VGA, 18-bit color graphics |
| Display Area: | 304 x 228 mm (12.0 x 9.0 in.) |
| Display Type: | Color active-matrix TFT |
| Operator Input: | Touch / Keypad |
| Product Family: | PanelView Plus 7 Performance terminals |
| Power Consumption: | 50 W max (2.1 A at 24V DC) |
| Part Number/Catalog No. | 2711P-B7C22D9P |
| Display Size | 6.5 inches. |
| Backlight: | White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable |
| Product Line | Panelview Plus 7 |
| Input Type | Touchscreen/Keypad |
| Display Color | Color |
| Memory | 512 Mb |
| Input Voltage | 24 VDC |
| Backlight | LED |
| Weight | 3.25 LBS |
| UPC | 885630844503 |
2711P-T7C22D9P, 2711P-T7C22D9P-B, 2711P-T7C22A9P, 2711P-T7C22A9P-B, 2711P-B7C22D9P, 2711P-B7C22D9P-B,
2711P-B7C22A9P, 2711P-B7C22A9P-B, 2711P-T9W22D9P, 2711P-T9W22D9P-B, 2711P-T9W22A9P, 2711P-T9W22A9P-B, 2711P-T10C22D9P,
2711P-T10C22D9P-B, 2711P-T10C22A9P, 2711P-T10C22A9P-B, 2711P-B10C22D9P, 2711P-B10C22D9P-B, 2711P-B10C22A9P, 2711P-B10C22A9P-B,
2711P-T12W22D9P, 2711P-T12W22D9P-B, 2711P-T12W22A9P, 2711P-T12W22A9P-B, 2711P-T15C22D9P, 2711P-T15C22D9P-B, 2711P-T15C22A9P,
2711P-T15C22A9P-B, 2711P-B15C22D9P, 2711P-B15C22D9P-B, 2711P-B15C22A9P, 2711P-B15C22A9P-B, 2711P-T19C22D9P, 2711P-T19C22D9P-B,
2711P-T19C22A9P, 2711P-T19C22A9P-B, 2711P-T9W22D9P-BSHK, 2711P-T12W22D9P-BSHK, 2711P-T7C22D9PK, 2711P-T9W22D9PK,
2711P-T10C22D9PK, 2711P-T12W22D9PK, 2711P-T15C22D9PK, 2711P-T19C22D9PK, 2711P-B15C22D9PK, 2711P-T12W22D9P-BM001,
2711P-T12W22D9P-BM002, 2711P-T12W22D9P-BM003, 2711P-T12W22D9P-BM004, 2711P-T12W22D9P-BM005, 2711P-T12W22D9P-BM006,
2711P-T12W22D9P-BM007, 2711P-T12W22D9P-BM008, 2711P-T12W22D9P-BM009, 2711P-T12W22D9P-BM010, 2711P-T12W22D9P-BM011,
2711P-T12W22D9P-BM012, 2711P-T12W22D9P-BM013, 2711P-T12W22D9P-BM014, 2711P-T12W22D9P-BM015, 2711P-T12W22D9P-BM016
Somo service provider Allen Bradley, reparaciones y recambios.
Mas información?
>>>2711P-TD009
| Weight | 2,0 kg |
|---|---|
| Dimensions | 28,5 × 17,9 × 6,96 cm |
