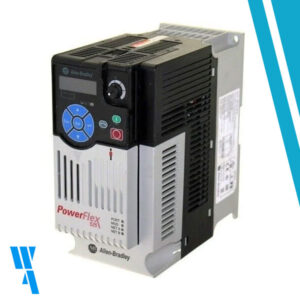

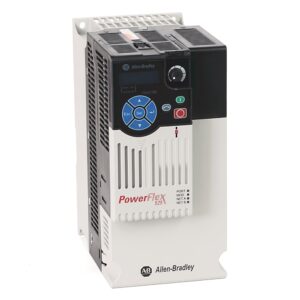

25B-D017N104, Allen Bradley, Variador de CA PowerFlex 525, con EtherNet/IP integrado y seguridad, 380…480 VCA, trifásico, 17 amperios, 10 hp, 7,5 kW de servicio normal;
Description
El Allen-Bradley 25B-D017N104 es un variador de CA de frecuencia ajustable PowerFlex 525. Este variador tiene una tensión nominal de 480 VCA, trifásica. Tiene una potencia de salida nominal de 7,5 kW o 10,0 HP para funcionamiento normal y de servicio pesado y una corriente de salida de 17,0 amperios. Tiene un gabinete con clasificación IP20 NEMA/abierto y un variador de modelo estándar.
Technical Specifications for 25B-D017N104
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Built-in communication port: | Ethernet I/P / RS485 |
| Control Method: | Ethernet I/P |
| Enclosure Rating: | IP20 / NEMA UL Type Open |
| Zero Stacking: | Supported |
| Installation: | Panel Mount / DIN Rail |
| I/O: | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Output Power: | 7.5 kW or 10.0 HP |
| Input Phase: | 3-Phase |
| Input Voltage: | 323-528 VAC |
| Product Family: | PowerFlex 40P |
| Output Voltage | 0-460VAC |
| Part Number/Catalog No. | 25B-D017N104 |
| Output Current | 17.0 A |
| Series | PowerFlex 525 Drive |
| Product Type | 3-Phase Drive |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame C |
| EMC Filtering Options | No Filter |
| Voltage | Three Phase, 480 VAC |
| UPC | 884951885936 |
PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase
IP20 NEMA / Open Type, Filter
- 25B-D1P4N114 0.5 HP, 0.4 kW, Frame A
- 25B-D2P3N114 1.0 HP, 0.75 kW, Frame A
- 25B-D4P0N114 2 HP, 1.5 kW, Frame A
- 25B-D6P0N114 3 HP, 2.2 kW, Frame A
- 25B-D010N114 5 HP, 4 kW, Frame B
- 25B-D013N114 7.5 HP, 5.5 kW, Frame C
- 25B-D017N114 10 HP, 7.5 kW, Frame C
- 25B-D024N114 15 HP, 11 kW, Frame D
- 25B-D030N114 20 HP, 15 kW, Frame D
- 25B-D037N114 25 HP, 18.5 kW, Frame E
- 25B-D043N114 30 HP, 22 kW, Frame E
Reparaciones y service en plantas.
Support links Argentina.
>>>25B-D017N104
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 18,4 × 10,9 × 22 cm |
