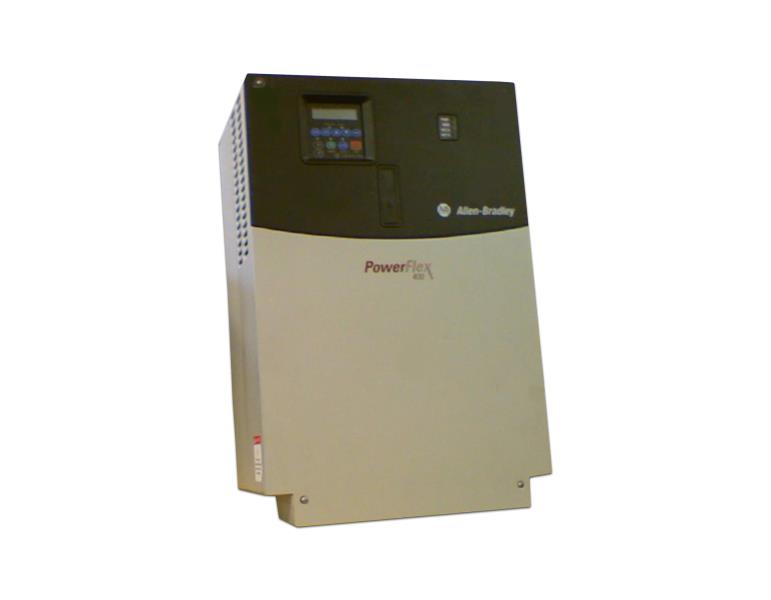

22C-D105A103, ALLEN BRADLEY, PowerFlex 400, Variador de CA, 55 kW (75 HP), entrada de CA de 480 V, 3 PH, 50-60 Hz, salida de 105 A, IP30, UL-NEMA
Description
El 22C-D105A103 es un variador de CA de frecuencia ajustable PowerFlex 400 de Allen-Bradley. Este variador está diseñado específicamente para aplicaciones de ventiladores y bombas. Funciona cuando se alimenta con voltaje de 480VAC, Trifásico. Ofrece una potencia de salida de 75 kW o 105,0 CV. La corriente de salida del variador es de 105 amperios con una carcasa IP30, NEMA UL tipo 1.
Technical specifications for 22C-D105A103
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 400 |
| Part Number | 22C-D105A103 |
| UPC | 820919234200 |
| Weight | 82.00 lbs (37.19 kg) |
| Input Voltage | 380-480VAC |
| Output Voltage | 0-480VAC |
| Output Current | 105.0 A |
| Output Power | 55.0 kW or 75.0 HP |
| I/O | Discrete Inputs: Three (3) semi-programmable and Four (4) Fully programmable sink / source inputs Discrete Outputs: Two (2) Form C contacts and One (1) optocoupler output outputs Analog Input: One (1) Unipolar –10…10V or One (1) bipolar 0…10V or 4…20 mA. Analog Output: Two (2) 0-10VDC; 0-20mA |
| Installation | Panel Mount |
| Enclosure Rating | IP30 / NEMA UL Type 1 |
| Built-in communication port | RS485 |
| Control Method | Volts per Hertz (V/Hz), Sinusoidal PWM |
| Internal PID | Supported |
| EMC Filter | None |
| Human Interface Module | Integrated |
| Optional communication protocols | Dual Ethernet I/P; DeviceNet; ProfiBus DP |
| Drive Type | Fan and Pump |
| Horsepower | 75 |
| Phase | 3-Phase |
| Enclosure | IP30 NEMA/UL Type 1 |
| Amperage | 105 Amps |
| Operating Shock | 15 g |
| Humidity | 5 to 95% |
| Operating Temperature | 14 to 113 degrees Fahrenheit |
Mas Información?
Additional information
| Weight | 15,0 kg |
|---|---|
| Dimensions | 25,9 × 37,0 × 60,5 cm |
