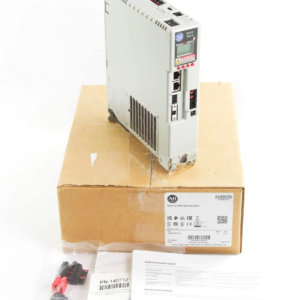

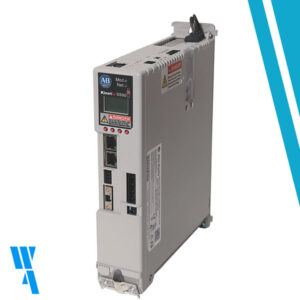

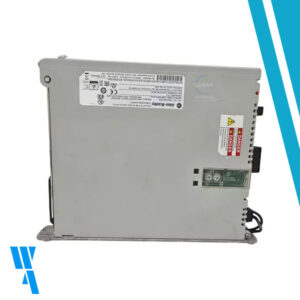

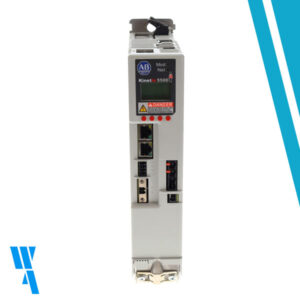

2198-H040-ERS, Allen Bradley, Kinetix 5500, Servoaccionamientos Ethernet/IP, Trifásico, Salida de corriente máxima de 32,5 A. Alimentación de 190 a 528 V CA.
Description
El 2198-H040-ERS es un servoaccionamiento Kinetix 5500. Este servoaccionamiento es compatible con voltajes de entrada de CA de 195…264 V rms, trifásicos con 240 V CA nominales y 324…528 V rms, trifásicos con 480 V CA nominales. Este servoaccionamiento tiene una corriente de salida continua (rms) de 13,0 A, una corriente de salida pico de 32,5 A y una potencia de salida de 4,0 kW a 8,3 kW según el suministro de voltaje de entrada.
Technical specifications for 2198-H040-ERS
| Manufacturer | Rockwell Automation |
|---|---|
| Input Voltage | 195…264V rms, three-phase (240V nom); 324…528V rms, three-phase (480V nom); |
| Continuous Output Current (0-peak) | 13.0 A |
| Part Number/Catalog No. | 2198-H040-ERS |
| Brand | Allen-Bradley |
| Product Category | Kinetix 5500 |
| Input Frequency: | 47…63 Hz |
| Continuous Output Power | 4.0 KW at 195…264V rms, three-phase; 8.4 kW at 324…528V rms, three-phase; |
| Continuous Output Current (rms) | 18.4 A |
| Peak Output Current (0-peak) | 32.5 A |
| Peak Output Current (rms) | 45.9 A |
| Velocity Loop | 300 Hz |
| Current Loop | 1000 Hz |
| Efficiency | 97% |
| Short-circuit current rating | 200,000 A (rms) symmetrical |
| Integrated Safety Over Ethernet I/P | Not supported |
| Hardwired Safety | Yes |
| Frame Size | Frame Size 2 |
| Peak Output Current | 32.5 Amperes |
| Nom Drive Voltage | 240/480 V (Three Phase) |
| Integrated Safety Over Ethernet/IP | No |
| Dimensions | 2.16 x 8.90 x 10.43 in (55 x 226 x 265 mm) |
| Weight | 5.0 lbs (2.3 kg) |
Mas Información?
Additional information
| Weight | 2,3 kg |
|---|---|
| Dimensions | 22,6 × 5,5 × 26,5 cm |
