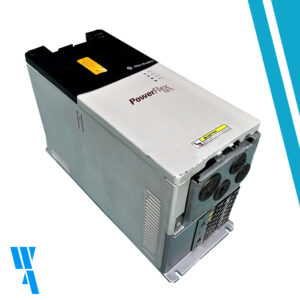

| Number of analogue outputs |
2 |
| Mains voltage |
480 V |
| Integrated breaking resistance |
No |
| Brake IGBT |
Brake IGBT installed |
| Internal communication module |
No communication module |
| Fuse current rating |
40 A @ 650V DC |
| Input voltage rating |
480V AC, 3-phase, 60 Hz |
| AC input undervoltage trip |
280V AC @ 480V |
| Bus voltage, nom |
648V DC @ 480V |
| Bus undervoltage shutoff/fault |
305V DC @ 480V |
| Bus overvoltage trip |
810V DC @ 480V |
| Output voltage rating |
0…460V AC @ 480V AC, 1-phase |
| Circuit breaker current rating, max |
80 A @ 480V AC, 3-phase |
| Motor circuit protector current rating, max |
30 A @ 480V AC, 3-phase |
| Output current rating, continuous |
22 A @ 650V DC |
| Output current rating, 1 min |
24.2 A @ 650V DC |
| Output current rating, 3 sec |
33 A @ 650V DC |
| Logic control ride-thru |
0.5 seconds minimum, 2 seconds typical |
| Brake resistor |
No internal brake resistor |
| Input current rating |
23.3 A @ 650V DC |
| Documentation |
Manual |
| Carrier frequency |
2, 4, 8, and 10 kHz. Drive rating based on 4 kHz |
| Encoder quadrature |
90 degrees, ±27 degrees at 25 °C (77 °F) |
| AC input overvoltage trip |
570V AC @ 480V |
| Input power rating |
16.6 kVA @ 480V AC, 3-phase |
| Dual element time delay fuse current rating |
25…50 A @ 480V AC, 3-phase |
| Non-time delay fuse current rating |
25…80 A @ 480V AC, 3-phase |
| Digital input latency, typical |
9.2 ms @ stop signal for SVC motor control |
| Heat sink thermistor |
Monitored by microprocessor overtemp trip |
| Digital input latency |
9.2…16.0 ms @ start signal for SVC motor control |
| Drive to motor power ratio, max |
Recommended not greater than 2:1 ratio |
| Stop modes |
Multiple programmable stop modes including — Ramp, Coast, DC-brake, Fast brake, Ramp-to-hold and S-curve |
| Frequency accuracy |
Digital input: within ±0.01% of set output frequency |
| Acceleration/deceleration |
Two independently programmable accel and decel times. Each time can be programmed from 0…3600 seconds in 0.1 second increments |
| Analog input latency, typical |
6.4 ms @ speed signal for SVC motor control |
| Number of digital inputs |
6 |
| Number of digital outputs |
3 |
| Number of analogue inputs |
2 |
| Internal watts loss |
99 W @ 480V, 15 Hp normal duty (IP20, NEMA/UL Type 1) |
| Motor voltage, nom |
460V @ 380…480V drive rating, 480V nominal line voltage |
| Supporting protocol for DeviceNet |
Yes |
| Human interface model |
No HIM (blank plate inserted) |
| Max. output frequency |
420 Hz |
| External watts loss |
226 W @ 480V, 15 Hp normal duty (IP20, NEMA/UL Type 1) |
| Total watts loss |
326 W @ 480V, 15 Hp normal duty (IP20, NEMA/UL Type 1) |
| Supporting protocol for EtherNet/IP |
Yes |
| Line voltage, nom |
480V @ 380…480V drive rating, 460V nominal motor voltage |
| Mains frequency |
60 Hz |
| Actual short circuit rating |
Determined by AIC rating of installed fuse/circuit breaker |
| Internal EMC filtering |
With EMC filter with common mode choke |
| Custom drive/firmware |
No custom firmware |
| Feedback option |
No feedback |
| Analog input latency |
4.8…12.4 ms @ speed signal for SVC motor control |
| Drive full power range |
460…528V @ 380…480V drive rating |
| Drive operating range |
342…528V @ 380…480V drive rating |
| Torque regulation |
Without feedback: ±5 %, 600 rad/sec bandwidth |
| Enclosure type |
IP20/NEMA/UL Type 1 |
| Output current rating |
22 amps, 15 Hp normal duty, 10 Hp heavy duty, frame 1 |
| Control options |
Vector control with 24V DC I/O |
| Drive overcurrent trip |
Instantaneous current limit: 220…300% of rated current (dependent on drive rating) |
| Efficiency |
97.5% at rated amps, nominal line volts |
| Encoder supply |
12V, 250 mA. 12V, 10 mA minimum inputs isolated with differential transmitter, 250 kHz maximum |
| Speed control-speed regulation |
Without feedback (Vector Control Mode): 0.1 % of base speed across 120:1 speed range, 120:1 operating range, 50 rad/sec bandwidth |
| Current limit capability |
Proactive current limit programmable from 20…160% of rated output current, Independently programmable proportional and integral gain |
| Selectable motor control |
Sensorless vector with full tuning. Standards V/Hz with full custom capability and vector control |
| Frequency control-speed regulation |
With slip compensation (Volts per Hertz mode): 0.5% of base speed across 40:1 speed range, 40:1 operating range, 10 rad/sec bandwidth |
| Input phases |
3-phase input provides full rating for all drives. 1-phase operation possible on certain drives and provides 50 % of rated current. Frames 0…6: drive can be supplied as 6 pulse or 18 pulse in an engineered package. |
| Control method |
Sine coded PWM with programmable carrier frequency, ratings apply to all drives, the drive can be supplied as 6 pulse or 18 pulse in an engineered solution |
| Encoder requirements |
Encoders must be line driver type, quadrature (dual channel) or pulse (single channel), 8…15V DC output (4…6V DC when jumpers are in 5V position), single-ended or differential and capable of supplying a min. of 10 mA per channel, maximum input frequen |
| Number of phases output |
3 |
| Number of phases input |
3 |
| Relative symmetric net voltage tolerance |
10 % |
| With control element |
Yes |
| Supporting protocol for LON |
Yes |
| Supporting protocol for TCP/IP |
Yes |
| Supporting protocol for PROFIBUS |
Yes |
| Supporting protocol for CAN |
Yes |
| Supporting protocol for Modbus |
Yes |
| Motor overload protection |
Frames 0…6 vector control: powerflex 700 drives with vector control, which is identified by a C or D in position 15 of the catalog number, provide class 10 motor overload protection according to NEC article 430 and motor overtemperature protection acco |
| Input frequency tolerance |
47 Hz |
| Encoder duty cycle |
50% ±10% |
| Displacement power factor (all drives) |
0.98 across speed range |
| Short circuit rating, max |
200000 amps symmetrical |
| Output voltage range |
0 to rated motor voltage |
| Encoder type |
Incremental, dual channel |
| Power ride-thru |
15 milliseconds at full load |
| Short circuit trip |
Phase-to-phase on drive output |
| Ground fault trip |
Phase-to-ground on drive output |
| Drive to motor power ratio, min |
Recommended not less than 1:2 ratio |
| Control logic noise immunity |
Showering arc transients upto 1500V peak |
| Line transients |
Up to 6000 volts peak per IEEE C62.41-1991 |
| Intermittent overload |
110% overload capability for up to 1 minute, 150% overload capability for up to 3 seconds |
