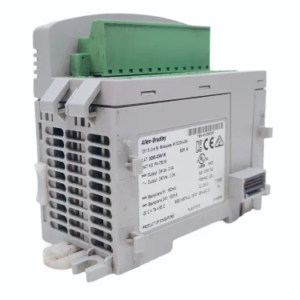

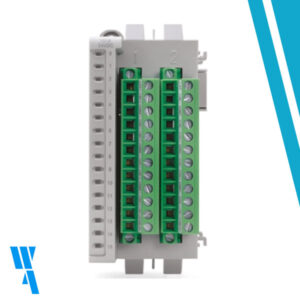

2085-OW16, Allen Bradley, Módulo de salida, Micro850, digital, 16 puntos, 12/24 VCC, relé, 2 A.
Description
El modelo 2085-OW16 de Allen-Bradley es un módulo de salida de relé Micro800. Este módulo cuenta con dieciséis (16) canales de salida de relé de CA/CC que funcionan a voltajes nominales de 120 V CA, 240 V CA, 240 V CA, 24 V CC y 125 V CC. Este módulo es compatible con los controladores lógicos programables (PLC) Micro850 y Micro870.
Technical specifications for 2085-OW16
| Manufacturer | Rockwell Automation |
|---|---|
| Part Number/Catalog No. | 2085-OW16 |
| Brand | Allen-Bradley |
| Product Description: | Micro 800 Expansion I/O module |
| Compatible Controllers: | Micro 850; Micro 870 |
| Mounting: | DIN Rail / Panel mounting |
| Voltage Category: | AC/DC normally open relay |
| Operating Voltage range: | 120VAC, 240VAC, 240VAC, 24VDC and 125VDC |
| Bus Current draw, 5.0 V: | 120 mA |
| Bus Current draw, 24 V: | 50 mA |
| Power Dissipation: | 2.72 Watts |
| Wire size: | 0.25… 2.5 mm2 (22…14 AWG) solid or stranded copper wire rated at 75 °C (167 °F ), or greater, 1.2 mm (3/64 in.) insulation max. |
| Insulation strip length: | 10 mm (0.39 in.) |
| Product Type | Expansion I/O Module |
| Inputs | N/A |
| Input Type | N/A |
| Outputs | 16 |
| Output Type | Relay, 2A |
Mas información?
Additional information
| Weight | 0,285 kg |
|---|---|
| Dimensions | 2,8 × 9,0 × 8,7 cm |
