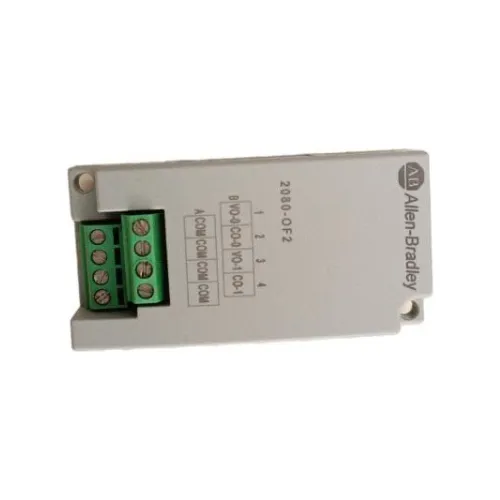

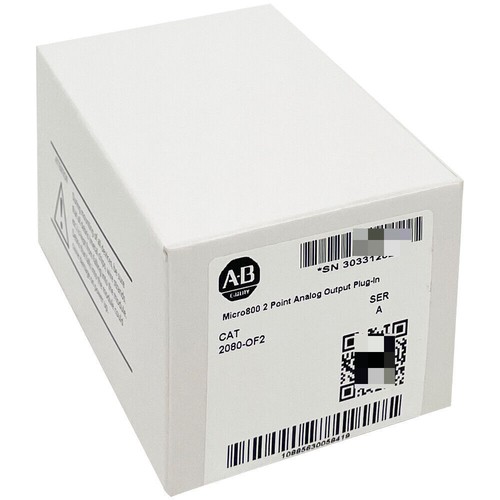

2080-OF2, Allen-Bradley Micro800, PLC, Plug-in, Module, 2AO 0 to 20mA, 0 to 10VDC
Description
Las especificaciones de este controlador lógico programable Micro 800 incluyen 2-Ch V, salida analógica de 2-CH I unipolar y está (no aislada).
Technical specifications for 2080-OF2
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Analog Plug-in Module |
| Product Line | Micro 800 |
| Part Number | 2080-OF2 |
| Weight | 0.13 lbs (0.06 kg) |
| Number of Single Ended Outputs | 2 |
| Analog Normal Operating Voltage Range | 10V DC |
| Analog Normal Operating Current Range | 0-20mA |
| Resolution max. | 2.5 ms |
| Step Response to 63% | 5 ms |
| Current Load In Voltage Output max. | 10 mA |
| Repeatability | +/- 0.1% |
| Input Group to Bus Isolation | No Isolation |
| Channel to Channel Isolation | Non-Isolation |
| Cable Length max. | 10 m |
Mas Información?
Additional information
| Weight | 0,045 kg |
|---|---|
| Dimensions | 8,7 × 4,0 × 9,0 cm |
