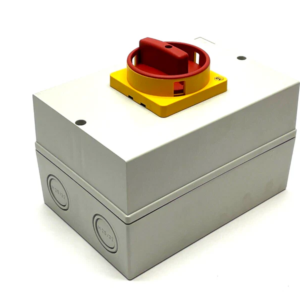

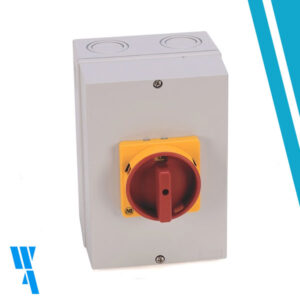

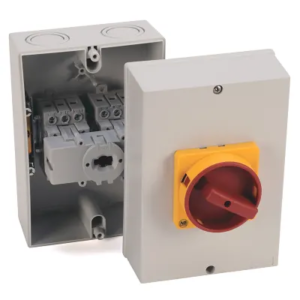

194E-Y16M-1756, ALLEN BRADLEY, Interruptor de carga IEC, termoplástico IP65, base en carril DIN, apagado-encendido 90 grados, 16 A, 6 polos, actuador tipo N Rd Ylw
$1.125.700 +IVA
Available on backorder
Description
Catalog #: 194E-Y16-1756-6, Bulletin 194E., Bulletin 194L
Technical Specifications
| Number of auxiliary contacts as normally open contact | 0 |
|---|---|
| Number of auxiliary contacts as normally closed contact | 0 |
| Conditioned rated short-circuit current Iq | 20 kA |
| Rated permanent current Iu | 16 A |
| Rated operation power at AC-23, 400 V | 7.5 kW |
| Max. rated operation voltage Ue AC | 690 V |
| Rated operation power at AC-3, 400 V | 5.5 kW |
| Rated short-time withstand current lcw | 800 kA |
| Type of control element | Long turning handle |
| Rated frequency | 60 Hz |
| Switch size | 16 A |
| Lost power per pole | 0.58 W |
| Conventional free air thermal current (Ith) | 25 A per IEC |
| Conventional enclosed thermal current (Ie) | 20 A per IEC |
| Rated operational voltage (Ue) | 690V per IEC |
| Rated isolation voltage (Ui) | 690V per IEC |
| Continuous current | UL/CSA (applications): 16 A |
| Rated breaking capacity | AC-23A (cosφ 0.45): 70 A @ 690V |
| Motor FLA rating | UL/CSA application: 9.6 A @ 240V, 60 Hz, 3 pole, 3 phase |
| Hp motor rating | UL/CSA application: 7.5 Hp @ 480V, 60 Hz, 3 pole, 3 phase |
| Fuse rating of circuit (type g, G), max | Short circuit current (co-ordination type 2): 20 A @ 400/415V |
| Rated current (Ie) | DC-21A (for resistive loads): 5 A @ 220V, 2 pole in series, T ≤1 ms, Ue max = 660V |
| Rated power (Pe) | AC-3: 5.5 kW @ 690V |
| Number of switches | 1 |
| Motor drive integrated | No |
| Voltage release optional | No |
| Type of electrical connection of main circuit | Screw connection |
| Switching rate | 120 ops/h |
| Rated impulse voltage (Uimp) | 8 kV per UL, CSA |
| Test voltage (Ui) | 2.5 kV for 1 minute |
| Heavy pilot duty |
Mas informacion, Reemplazos, Reparaciones, Service, Recambios? Somos Service Provider Argentina hace 23 anos.
Additional information
| Weight | 0,400 kg |
|---|---|
| Dimensions | 18 × 12,5 × 10,5 cm |
