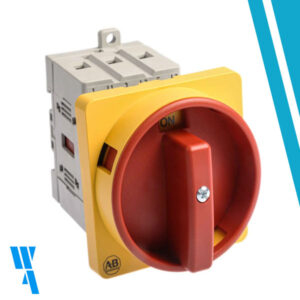

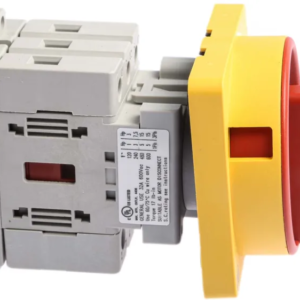

194E-A32-1753-6N, Allen Bradley, Interruptor de aislamiento, 3P, 32A, 690VAC, para carril DIN, IP66
Description
Interruptor de carga 194E, 32 A, 3 polos, apagado en 90 °, abierto, frontal/puerta, terminales estándar, con ACTR rojo/amarillo tipo N, estilo de interruptor abierto, apagado en 90 °
| Conditioned rated short-circuit current Iq | 5 kA |
| Connection type main current circuit | Screw connection |
| Degree of protection (IP), front side | IP20 |
| Device construction | Built-in device fixed built-in technique |
| Interlockable | yes |
| Max. rated operation voltage Ue AC | 600 V |
| Number of poles | 3 |
| Rated permanent current Iu | 32 A |
| Suitable for front mounting 4-hole | no |
| Suitable for ground mounting | yes |
| Switching power at 400 V | 15 kW |
| Type of control element | Turn button (knob) |
Mas información?
Additional information
| Weight | 0,230 kg |
|---|
