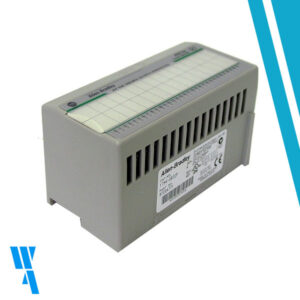

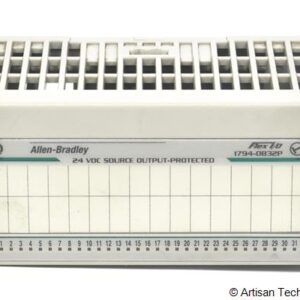

1794-OB32P, Allen Bradley, Módulo de salida Flex, 24 VDC, 32 Output digital
Description
El 1794-OB32P es un módulo de salida discreta de E/S de E/S de Allen-Bradley Flex. Este módulo viene con protección de canales individual, que tiene treinta y dos (32) canales de salida de abastecimiento de CC de 24 voltios. Es compatible para su uso con las unidades base terminales 1794-TB32 y 1794-TB32S. Tiene una calificación de corriente de salida de 14.0 amperios por módulo, con 6 amperios en total para los canales 0 … 15 y 8 amperios total para los canales 16-31.
Technical specifications for 1794-OB32P
| Manufacturer | Rockwell Automation |
|---|---|
| Output Current Rating | 14.0 A max per module (6 A total for channels 0…15; 8 A total for channels 16…31) |
| Part Number/Catalog No. | 1794-OB32P |
| Brand | Allen-Bradley |
| Product Description: | Flex IO DC Output Module |
| Number of Outputs: | Thirty-Two (32) Channels |
| Output circuit type: | Sourcing |
| Terminal base: | 1794-TB32 and 1794-TB32S |
| ON state Voltage, min: | 10VDC |
| ON state Voltage, max. | 31.2VDC |
| ON state Voltage, nom: | 24VDC |
| Enclosure | Open-type |
| Mounting: | DIN Rail |
| Wire Size: | Determined by installed terminal base |
| Operating Temperature: | 0 to 55 C (32 to 131 F) |
| Storage Temperature: | -40 to 85 C (-40 to 185 F) |
| Vibration: | 5g @ 10 to 500 Hz |
| Operating Shock: | 30 g |
| Product Type | Flex I/O Digital DC Output Module |
| Outputs | 32 Sourcing Current |
| On-state Voltage nom. | 24V DC |
| On-state Current max. | 500mA per Channel |
| On-state Voltage Drop max. | 0.5V DC |
| Off-state Leakage Current max. | 0.5mA |
| Isolation Voltage | 50V Continuous |
| Flexbus Current | 80mA @ 5V DC |
| Power Dissipation | 5.3W @ 31.2V DC max. |
| Thermal Dissipation | 18.1 BTU/hr. @ 31.2V DC max. |
| UPC | 10612598286031 |
