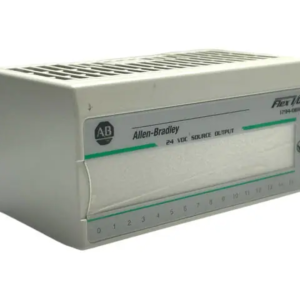

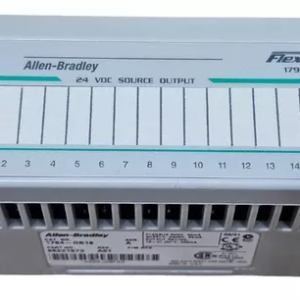

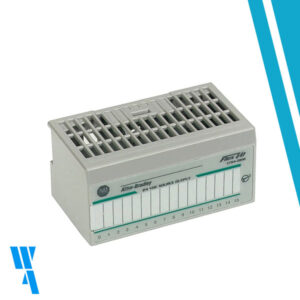

1794-OB16, Allen Bradley, FLEX I-O MOD. 16 SALIDAS 24VDC
Description
El Allen-Bradley 1794-OB16 es un módulo de salida discreta Flex IO. Este módulo presenta dieciséis (16) canales de salida de abastecimiento de 24 VDC. Es compatible con una variedad de unidades base terminales como 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK. Es compatible con los adaptadores Flex IO de 1794 para implementar la aplicación de E/S distribuida.
Technical specifications for 1794-OB16
| Manufacturer | Rockwell Automation |
|---|---|
| Part Number/Catalog No. | 1794-OB16 |
| Brand | Allen-Bradley |
| Product Description: | Flex IO DC Output Module |
| Number of Outputs: | 16, sourcing |
| Terminal base: | 1794-TB2,1794-TB3,1794-TB3S, 1794-TB3K, 1794- TB3SK |
| ON state Voltage, min: | 10VDC |
| ON state Voltage, max. | 31.2VDC |
| ON state Voltage, nom: | 24VDC |
| Indicators: | 16 Yellow status indicators |
| Keyswitch position | 2 |
| Enclosure | Open-type |
| Mounting: | DIN Rail |
| Wire Size: | Determined by installed terminal base |
| Operating Temperature: | 0 to 55 C (32 to 131 F) |
| Storage Temperature: | -40 to 85 C (-40 to 185 F) |
| Vibration: | 5g @ 10 to 500 Hz |
| Operating Shock: | 30 g |
| Product Type | Flex I/O Digital DC Output Module |
| Outputs | 16 Sourcing Current |
| On-state Voltage nom. | 24V DC |
| Output Current Rating | 8.0A |
| On-state Current max. | 500mA per Channel |
| On-state Voltage Drop max. | 0.5V DC |
| Off-state Leakage Current max. | 0.5mA |
| Isolation Voltage | 50V Continuous |
| Flexbus Current | 80mA @ 5V DC |
| Power Dissipation | 5.3W @ 31.2V DC max. |
| Thermal Dissipation | 18.1 BTU/hr. @ 31.2V DC max. |
| UPC | 10612598137852 |
Additional information
| Weight | 0,030 kg |
|---|---|
| Dimensions | 9,4 × 6,9 × 9,4 cm |
