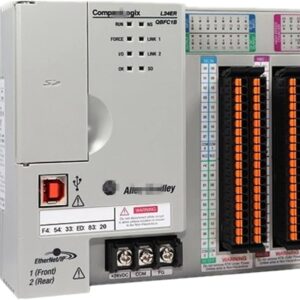

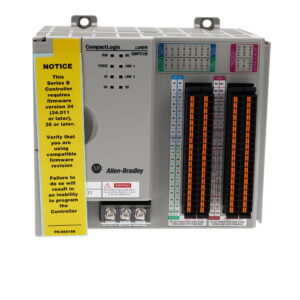

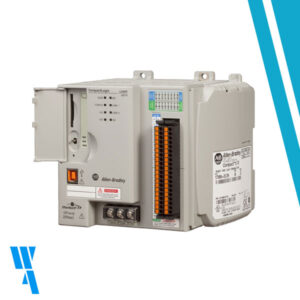

1769-L24ER-QBFC1B, Allen Bradley, CompactLogix 5370, L2, 2 puertos EtherNet/IP con capacidad de anillo a nivel de dispositivo Memoria de 750 KB 16 entradas de CC 16 salidas de CC 4
Description
SPECIFICATIONS
Communication : Ethernet , USB
Depth : 105mm, 4.13″
Display : Status LEDs
Embedded Network Port : 2 Ethernet
Enclosure : None (open-style)
Height : 118mm, 4.65″
Input Signal : 10-30VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA, Thermocouple: J, K, T, E, R, S, B, N and C, RTD: Platinum 385, Platinum 3916, Copper 426, Nickel 672, Nickel 618, Nickel-Iron 518, Resistance
Isolation : 30V (continuous), Basic Insulation Type, USB to system, Ethernet to system and Ethernet to Ethernet. Type tested at 500V AC for 60 s
Local Programming Port : USB/Ethernet
Memory : 0.5MB
Mounting : DIN Rail / Panel mount
Non Volatile Memory Option : Secure Digital
Number Of Channels : 42
Operating Temperature : 0…60 °C (32…140 °F)
Output Signal : 24VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA
Power Supply : 24V DC input, Isolated,Class 2/SELV
Special Features : Universal Analog Input
Sub Brand : CompactLogix
Type : Standard Controller
Width : 140mm, 5.51″
Allen Bradley Service, PLC, Argentina, Hacemos Reparaciones hace mas de 23 anos.
Additional information
| Weight | 2,5 kg |
|---|---|
| Dimensions | 14 cm |
