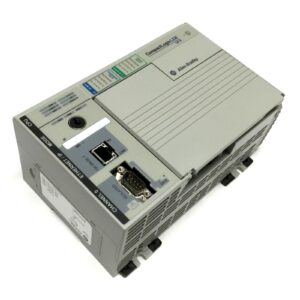

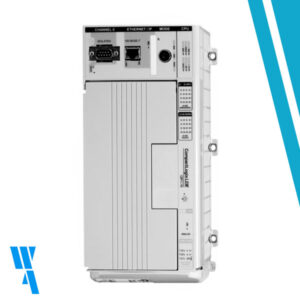

1769-L23E-QB1B, Allen Bradley, CompactLogix 5370 L2 Controller, 2 EtherNet/IP ports, 750KB memory, 16 DC in, 16 DC out
Description
El Allen-Bradley 1769-L23E-QB1B es un controlador empaquetado CompactLogix 5370 L2. Es parte de la familia de productos del controlador de automatización programable (PAC) CompactLogix que cuenta con un (1) puerto de comunicación Ethernet y un (1) RS232 integrados. Tiene una memoria de usuario integrada de 512 KB y admite la instalación de hasta tres (3) módulos de E/S 1769.
Technical Specifications for 1769-L23E-QB1B
| Manufacturer | Rockwell Automation / Allen-Bradley |
| No. of Embedded Inputs: | (16) 24 VDC |
| No. of Program per Task: | 100 |
| No. of Task: | 32 Task |
| Maximum number of I/O modules supported: | 3 1769 Modules |
| Supported Protocols: | Ethernet I/P; DF1; DH485; ASCII |
| Communication ports: | 1 Ethernet I/P; 1 RS232 |
| Product Type: | CompactLogix Controller |
| Programming Language: | Relay ladder (Safety Task only); Structured Text; Function block; SFC |
| Mounting: | DIN Rail |
| Current draw @ 5V DC: | 1000 mA |
| Current draw @ 24V DC: | 700 mA |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-L23E-QB1B |
| Product Line | CompactLogix |
| Module Type | Processor Module |
| Communication | Serial and Ethernet |
| Memory | 512 KB |
| Shipping Weight | 3 pounds |
| Shipping Dimensions | 11 x 8 x 6 inches |
| Series | A and B |
| Replacement Terminal Block Part Number | 1769-RTBN18 |
| Wire Type | Copper-90 degrees Celsius |
| Wire Size (Solid) | 22 to 14 AWG |
| Wire Size (Stranded) | 22 to 16 AWG |
| Battery | 1769-BA |
| End Cap | 1769-ECR |
| UPC | 10612598350763 |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 32 × 22 × 22 cm |
