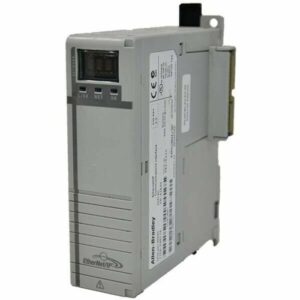

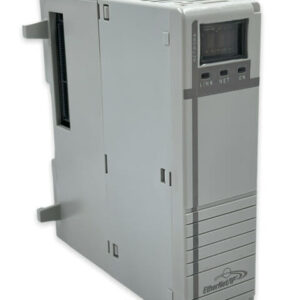

1768-ENBT, Allen-Bradley, CompactLogix communication adapter that supports Ethernet protocol
Description
El Allen-Bradley 1768-ENBT Ser. A es un módulo CompactLogix.
Este módulo forma parte de la familia de productos CompactLogix 1768 que permite que un conjunto CompactLogix se comunique con dispositivos conectados a la red Ethernet I/P.
Este módulo cuenta con un (1) puerto Ethernet que admite comunicación semidúplex y full-duplex de 10/100 Mbps, con capacidad de negociación automática, en operación semidúplex o full-duplex.
Technical Specifications for 1768-ENBT
| Supported no. of instances: | Two (2) with 1768-L43; Four (4) with 1768-L45 |
| Power consumption | 4.34 Watts |
| Backplane current: | 834 mA at 5.2V DC |
| Operating Temperature: | 0° to +60°C (+32° to +140°F) |
| Operating Shock: | 30 g |
| Operating Vibration: | 5 g @ 10 – 500 Hz |
| Mounting Location: | 1768 CompactLogix |
| Mounting Type: | DIN Rail or Panel Mount |
| Connectors: | RJ45 |
| Cable: | Category 5 / Category 6 cable |
| Maximum no. of Connections: | 64 CIP / 32 Ethernet TCP/IP |
| Ethernet Speed: | 10/100 Mbps |
| Compatible Controllers: | 1768-L43 / 1768-L45 |
| ContrEthernet Topology:olNet Topology: | Linear Topology |
| Series | CompactLogix |
| Integrated Ports: | One (1) Ethernet |
| Manufacturer | Allen Bradley |
| Module Type | Ethernet Communication Module |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1768-ENBT |
| Product Line | CompactLogix |
| Shipping Weight | 2 pounds |
| Shipping Dimensions | 8 x 8 x 5 inches |
| UPC | 10612598307521 |
Somos service provider de AB En Argentina, podemos sustituir, reparar, reemplazar su equipos.
No haga migración consúltenos.
Mas información?
Additional information
| Weight | 0,213 kg |
|---|---|
| Dimensions | 10,5 × 5,7 × 13,2 cm |
