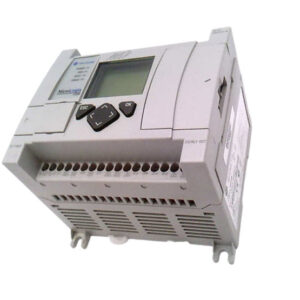

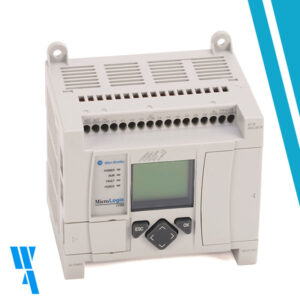

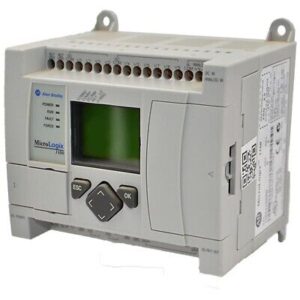

1763-L16BBB, Allen Bradley, MicroLogix 1100, alimentación de 24 VCC, (10) entradas digitales de 24 VCC, (2) entradas analógicas de 10 V, (2) salidas de relé, (4) FET de 24 VCC
Description
El Allen-Bradley 1763-L16BBB es un controlador MicroLogix 1100. Este controlador se alimenta mediante un voltaje de suministro externo de 24 VCC con doce (12) entradas discretas de 24 VCC integradas, dos (2) entradas analógicas de 0-10 VCC, dos (2) salidas de relé y cuatro (4) salidas FET. Este controlador tiene interfaces de comunicación RS232 y Ethernet integradas.
Technical Specifications for 1763-L16BBB
| Manufacturer | Rockwell Automation |
| Product Type | Programmable Controller |
| Protocol: | DF1 / MODBUS / Ethernet I/P |
| FET Output Voltage range: | 24VDC |
| Relay Output operating Voltage: | 125V DC / 120/240 VAC |
| Analog Resolution | 10 Bit |
| Analog Data Type | 10-bit unsigned integer |
| Analog Voltage Range | 0-10VDC |
| Memory: | 1763-MM1 |
| Brand | Allen-Bradley |
| Input Power | 24V DC ( -15%, +10%) Class 2 SELV |
| Listing | This specification list has been compiled by DO Supply. |
| Part Number/Catalog No. | 1763-L16BBB |
| Series | MicroLogix 1100 |
| Point Count | 16 Points |
| Analog Inputs | (2) Voltage Input |
| Display Type | LCD |
| Digital Inputs | (10) 24VDC |
| Digital Outputs | Two (2) Relay; Four (4) FET |
| Dimensions | 3.5 x 4.33 x 3.43 inches |
| Communication Port | 1 RS-232 / 485; 1 Ethernet |
| Power Consumption | 35 Watts |
| UPC | 10662074023049 |
Soporte técnico Argentina, Proveedor, Reparaciones, y nuevos.
Mas información?
Additional information
| Weight | 0,45 kg |
|---|---|
| Dimensions | 11 × 11 × 8 cm |
