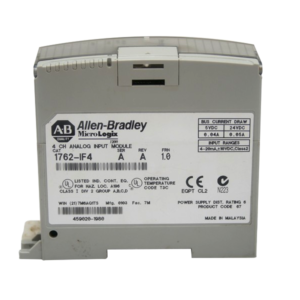

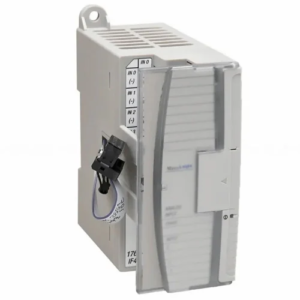

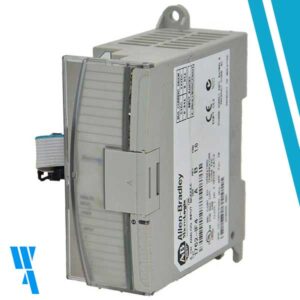

1762-IF4, Allen-Bradley, 4 canales, Analogico, Inputs/Outputs: 4 difencial entrada, (bipolar); rangos: Voltaje: ±10V, Curriente: 4-20 mA.
Description
El 1762-IF4 es un módulo compacto de entradas analógicas de cuatro (4) canales diferenciales.
Este módulo admite señales de 4-20 mA y de -10 a 10 V CC.
Este módulo es compatible con los controladores lógicos programables MicroLogix 1100, 1200 y 1400.
Technical Specifications for 1762-IF4
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1762-IF4 |
| Product Type: | Analog Input Module |
| Series | MicroLogix 1200 |
| Product Family: | MicroLogix |
| Analog Normal Operating Voltage | -10.5 to 10 Volts DC |
| Inputs | 4 Differential (Bipolar) |
| Voltage signal normal ranges: | ‘-10.5 … +10.5V dc |
| Current signal normal ranges: | 4 … 20 mA |
| Current signal full range: | -21 … +21 m |
| No. of Inputs: | Four (4) Differential (Bipolar) |
| Mounting Type | DIN Rail or Panel |
| Status Indicator | Single source LED |
| Recommended Cable | Belden 8761 (shielded) |
| UPC | 10611320152125 |
| Shipping Weight | 8.28 ounces |
| Enclosure Type Rating | IP20 |
| Converter | Delta-Sigma |
| Resolution: | 15 bit |
| Repeatability: | ±0.12% |
| Dimensions | 90 x 87 x 40.4 millimeters |
Consulte reparaciones y ventas, Proveedor Argentina.
Mas información?
Additional information
| Weight | 0,230 kg |
|---|---|
| Dimensions | 9,0 × 4,4 × 8,7 cm |
