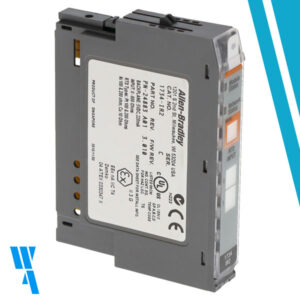

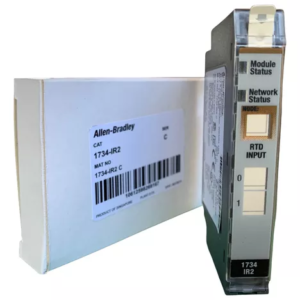

1734-IR2, Allen Bradley, Modulo, Detector de temperatura de resistencia (RTD) POINT I/O, 0-600 Ohm, 16Bits, Delta sigma conversion
Número de entradas: 2 de un solo extremo, no aisladas; Resolución: 16 bits; Rango de entrada: 0-600 ohmios; Tipo de conversión: Delta Sigma; Relación de rechazo de modo común
El 1734-IR2 es un módulo de entrada de detector de temperatura de resistencia (RTD) que forma parte de la familia de productos POINT IO de Allen-Bradley. Este módulo cuenta con dos (2) canales de entrada no aislados de un solo extremo. Cada canal admite sensores de 100 Pt α = 0,00385; 200 Pt α = 0,00385; 100 Pt α = 0,003916; 200 Pt α = 0,003916; 10 Cu α = 0,00427; 100 Ni α = 0,00618; 120 Ni α = 0,00618 y 120 Ni α = 0,00672. Además de las entradas de sensor RTD, este módulo también admite el cableado directo de señal analógica de 0 a 600 Ω. Este módulo tiene una resolución de 16 bits.
Technical specifications for 1734-IR2
| Manufacturer | Rockwell Automation |
|---|---|
| Keyswitch Position | 6 |
| Power Dissipation | 1.0 W @ 28.8V DC |
| Module Type | RTD / Resistance input module |
| Series | POINT I/O |
| Part Number/Catalog No. | 1734-IR2 |
| Brand | Allen-Bradley |
| No. of outputs | Two (2) Single-ended, non-isolated channels |
| Compatible RTD sensors | 100 Pt α = 0.00385; 200 Pt α = 0.00385; 100 Pt α = 0.003916; 200 Pt α = 0.003916; 10 Cu α = 0.00427; 100 Ni α = 0.00618; 120 Ni α = 0.00618 and 120 Ni α = 0.00672. |
| Compatible Resistance input: | 0-600 Ω |
| Resolution | 16 bits – 9.5 mΩ/cnt; 0.03 °C/cnt (Pt385 @ 25 °C) or 0.05 °F/cnt (Pt385 @ 77 °F) |
| Absolute Accuracy | 0.1% Full Scale @ 25 Deg. Celsius |
| Input step response (per channel) | 60 ms @ Notch = 50 Hz 50 ms @ Notch = 60 Hz 30 ms @ Notch = 100 Hz 25 ms @ Notch = 120 Hz 15 ms @ Notch = 200 Hz 13 ms @ Notch = 240 Hz 10 ms @ Notch = 300 Hz 8 ms @ Notch = 400 Hz 6 ms @ Notch = 480 Hz |
| Input update rate per module | 40 ms @ Notch = 50 Hz 33 ms @ Notch = 60 Hz (default) 20 ms @ Notch = 100 Hz 17 ms @ Notch = 120 Hz 10 ms @ Notch = 200 Hz 8 ms @ Notch = 240 Hz 7 ms @ Notch = 300 Hz 5 ms @ Notch = 400 Hz 4 ms @ Notch = 480 Hz |
| Current Draw | 220 mA @5V dc |
| Dimensions | 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.) |
| Enclosure type rating | None (open-style) |
| Module Location | 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS wiring base assembly |
| Inputs | 2 Single-Ended, Non-Isolated |
| Conversion Type | Delta Sigma |
| Data Format | Signed Integer |
| Isolation Voltage | 50 Volts Continuous |
| Thermal Dissipation | 3.3 BTU/hour |
| Enclosure | Open |
| Weight | 0.08 pounds (0.036 kilograms) |
| Dimensions (H x W x D) | 2.21 x 0.47 x 2.97 inches |
| Operating Temperature | -20-55 Celsius |
| UPC | 10612598269164 |
Catalog Numbers 1734-IR2, 1734-IR2K, 1734-IR2E, 1734-IT2I,
1734-IT2IK, Series C
| Weight | 0,036 kg |
|---|
