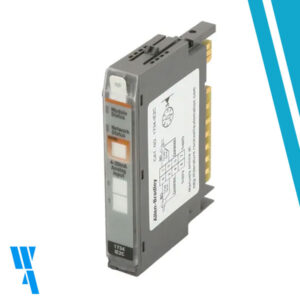

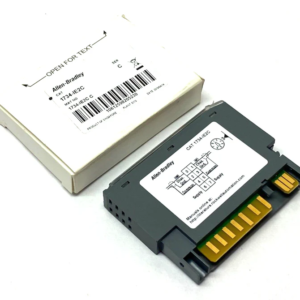

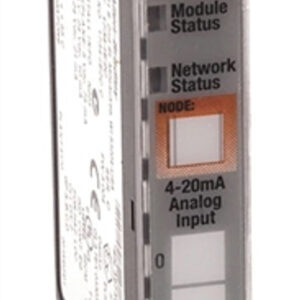

1734-IE2C, Allen Bradley, Flex I/O Modulo Analogico, entrada, salida, 2 Puntos, 0-20 mA y 4-20 mA, 16 bits, 10 to 28.8 Volts DC
Description
El 1734-II2C es un módulo de entrada analógica que forma parte de la familia de productos Point IO de Allen-Bradley. Este módulo presenta dos (2) canales de entrada de corriente sin aislados de un solo extremo. Cada canal es configurable para señales de salida de 0-20 mA y 4-20 mA con resolución de 16 bits-más de 0 … 21 mA 0.32 μA/CNT. Es compatible con cualquier adaptador de comunicación IO del punto, típicamente utilizado para implementar la arquitectura de E/S distribuida. Este módulo requiere 1734-TB, 1734-TBS, 1734-top o 1734 topes de ensamblajes de base de cableado.
Technical specifications for 1734-IE2C
| Manufacturer | Rockwell Automation |
|---|---|
| Resolution | 16 bits – over 0…21 mA 0.32 μA/cnt |
| Module Type | Analog Input Module |
| Series | POINT I/O |
| Part Number/Catalog No. | 1734-IE2C |
| Brand | Allen-Bradley |
| No. of outputs | Two (2) Single-ended, non-isolated channels |
| Output signal | 0-20 mA; 4-20 mA |
| Absolute Accuracy | 0.1% Full Scale @ 25 Deg. Celsius |
| Input step response (per channel) | 80 ms @ Notch = 50 Hz 70 ms @ Notch = 60 Hz (default) 16 ms @ Notch = 250 Hz 8 ms @ Notch = 500 Hz |
| Input update rate per module | 120 ms @ Notch = 50 Hz 100 ms @ Notch = 60 Hz (default) 24 ms @ Notch = 250 Hz 12 ms @ Notch = 500 Hz |
| Current Draw | 75 mA @5V dc |
| Power Dissipation | 0.6 W @ 28.8V DC |
| Dimensions | 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.) |
| Enclosure type rating | None (open-style) |
| Keyswitch position | 3 |
| Module Location | 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS wiring base assembly |
| Inputs | 2-Point |
| Conversion Type | Delta Sigma |
| Calibration | Factory Calibrated |
| Max Overload | Fault Protected 28.8 Volts DC |
| Enclosure Type | Open |
| Data Format | Signed Integer |
| Voltage | 10 to 28.8 Volts DC |
| Current | 10 mA |
| UPC | 10612598205230 |
Mas Información? Allen Bradley, Proveedor, Argentina, Service.
>>>1734-IE2C
Additional information
| Weight | 0,035 kg |
|---|---|
| Dimensions | 5,6 × 1,2 × 7,5 cm |
