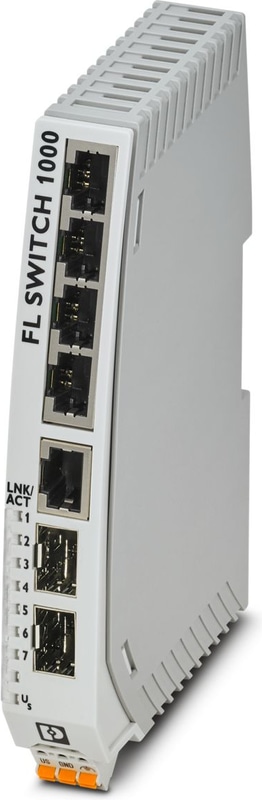

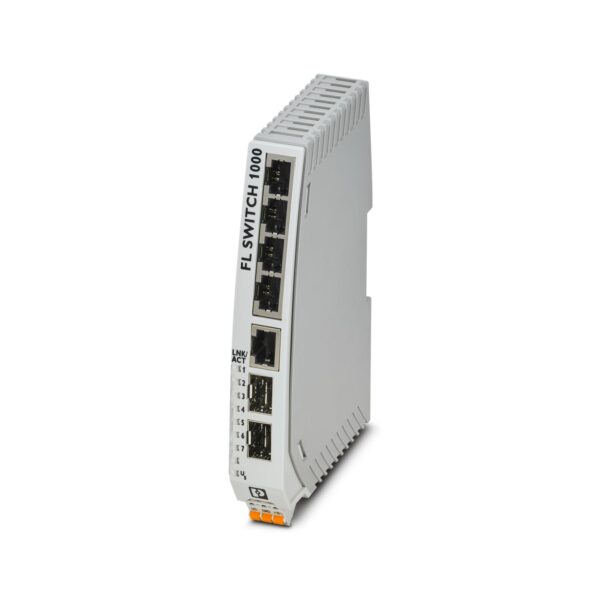

1005N-2SFX, Phoenix Contact® Distribuidor, Argentina, Industrial Ethernet Switch
Description
Switch no administrado serie 1000, 5 puertos RJ45 10/100 Mbps, 2 puertos SFP 100 Mbps, conformidad PROFINET clase A.
Ethernet (RJ45)
Number of interfaces 5
Connection method RJ45
Note on the connection method Auto negotiation and autocrossing
Transmission speed 10/100 Mbps
Transmission physics Ethernet in RJ45 twisted pair
Transmission length 100 m (per segment)

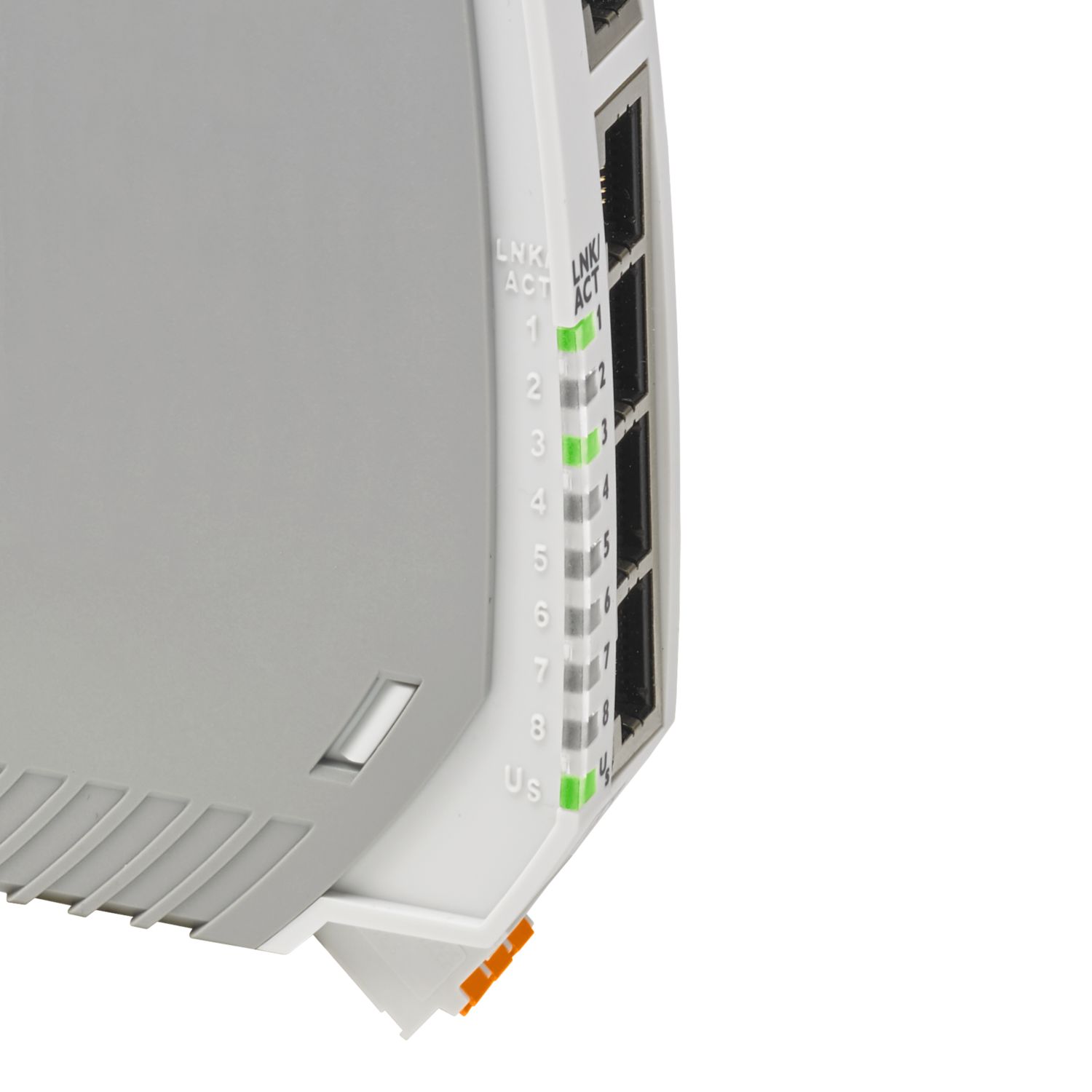

Signal LEDs Data receive, link status
No. of channels 5 (RJ45 ports)
Ethernet (SFP)
Number of interfaces 2
Connection method SFP
Transmission speed 100 Mbps (full duplex)
Transmission physics Depending on the SFP module
Transmission length up to 40 km (Depending on the fiber/SFP module used)
Signal LEDs Data receive, link status
No. of channels 2 (SFP ports)
Electrical Prop.
Maximum power dissipation for nominal condition 2.79 W (at 24 V DC)
Transmission medium Copper
Supply
Supply voltage (DC) 24 V DC
Supply voltage (AC) 24 V AC (50/60 Hz)
Supply voltage range 9 V DC … 32 V DC
18 V AC … 30 V AC (50/60 Hz)
Power supply connection Via COMBICON, max. conductor cross section 2.5 mm²
Residual ripple 3.6 VPP (within the permitted voltage range)
Max. current consumption 310 mA (at 9 V DC)
Typical current consumption 25 mA (at 24 V DC)
Mas Información?
Additional information
| Weight | 0,258 kg |
|---|---|
| Dimensions | 9,25 × 2,25 × 14,3 cm |
